• Coil weight Max. 25,000kg
• Thickness : 0.5 ~ 8.0mm / Width : 600 ~ 1560mm / Length : 800 ~ 6096mm
• Line Speed :

  1) Heavy Leveler : Max. 45m/min (Thickness 2.6 ~ 6.0mm)
  2) Light Leveler : Max. 60m/min (Thickness 0.5 ~ 2.5mm)

• Coil Inside Diameter : 508/610mm
• Coil Outside Diameter : 700 ~ 2,000mm

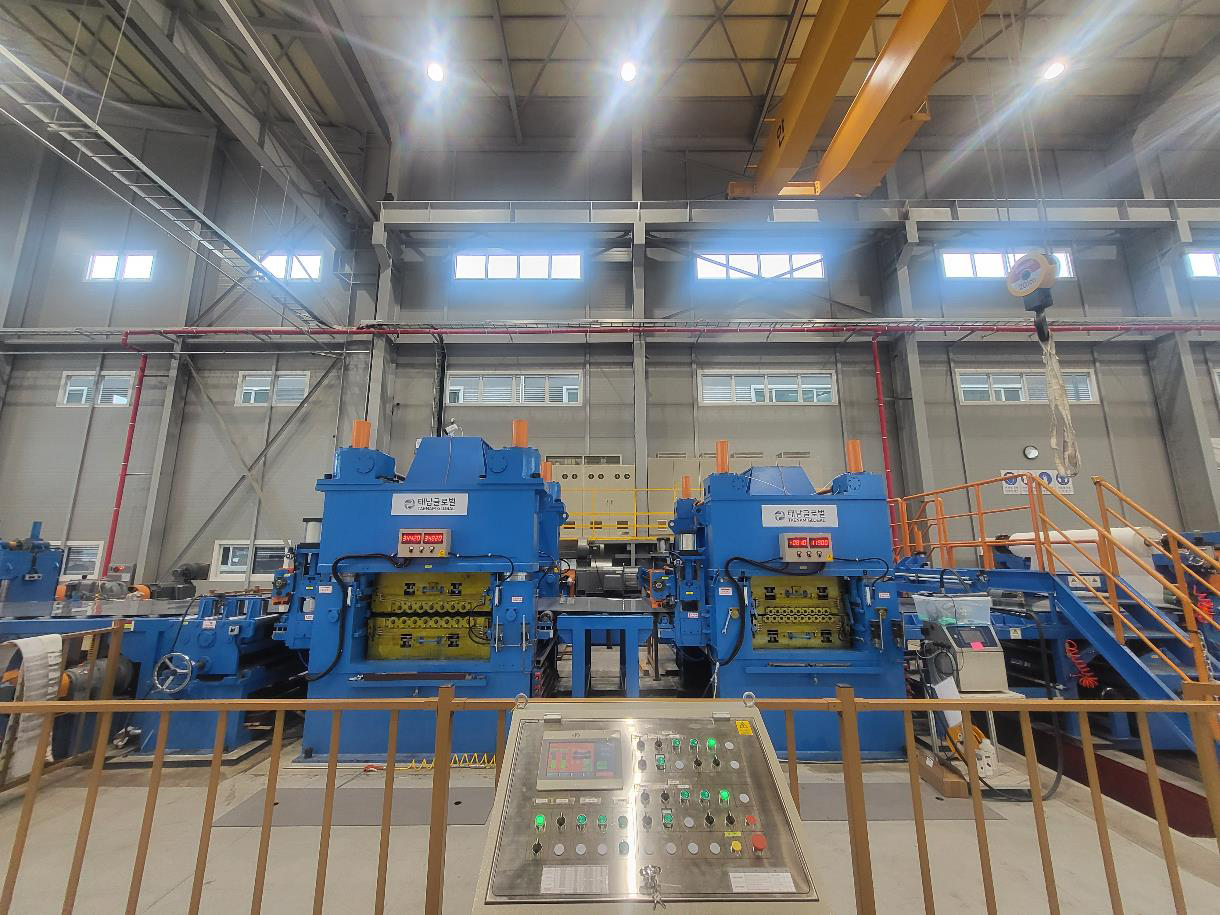

The latest shear line produced in 2022 is equipped with two levelers that enable both CR and HR operations. In particular, The shear line is specialized in production of HR sheets, non-standard sizes on time.
